What Are Bluetooth AoA Locators and Tags?
Bluetooth is best known for connecting headphones and speakers — but since Bluetooth 5.1, it can also pinpoint where things are indoors with impressive accuracy. The two pieces that make this possible are locators and tags. Together they form a Bluetooth AoA positioning system, using angle of arrival (AoA) to track assets in real time.
This short guide explains what Bluetooth AoA locators and tags are, how they work together, and why this approach is so much more accurate than older Bluetooth tracking.
▶ Watch: Brilliant Info Systems on YouTube
What Is Bluetooth AoA?
Bluetooth AoA is a bluetooth direction finding method introduced in Bluetooth 5.1. Instead of guessing distance from how strong a bluetooth signal is — the old received signal strength (RSSI) method, which is rough and unreliable — AoA technology measures the exact angle a signal arrives from. That shift is what unlocks high precision indoor positioning for the low-cost Bluetooth Low Energy (BLE) ecosystem.
What Is a Bluetooth AoA Locator?
A locator is a fixed device mounted on a wall or ceiling at a known position. Its defining feature is a multi-element antenna array. As a signal from a tag reaches the array, it hits each antenna element a fraction of a moment apart, and the locator reads those tiny differences to calculate the precise angle the signal came from.
Locators are usually mains- or PoE-powered because they stay in place and run continuously. With the angle from one well-placed locator — or angles from two — the system works out exactly where a tag is. This is the backbone of BLE tracking and wider RTLS solutions.
What Is a Bluetooth AoA Tag?
A tag is a small, portable device that moves with the item you want to track — a tool, a pallet, a piece of equipment, or a staff badge. Unlike the locator, a tag uses just a single antenna and simply broadcasts a BLE signal at regular intervals.
Because tags are small and run on a coin-cell battery, they are cheap enough to attach to thousands of items and can last for years. That affordability is what makes Bluetooth AoA so attractive for large-scale asset tracking and inventory visibility.

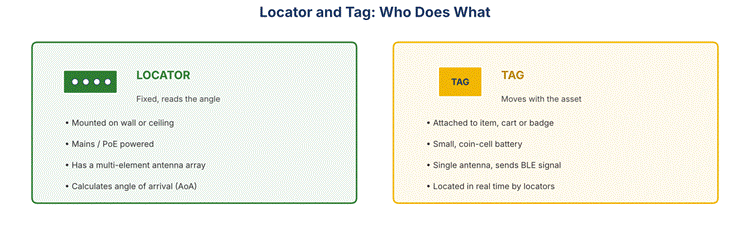

Locator vs Tag: The Key Difference
The simplest way to remember it: the locator stays still and does the clever maths; the tag moves and just sends a signal. Here is a quick comparison:
| Locator | Tag | |
| Position | Fixed, known spot | Moves with the asset |
| Antenna | Multi-element array | Single antenna |
| Power | Mains or PoE | Coin-cell battery |
| Job | Calculates the angle | Broadcasts BLE signal |
| Quantity | A few per area | One per tracked item |
How They Work Together
A tag broadcasts its BLE signal. The locator’s antenna array receives it, measures the angle of arrival, and sends that angle to the positioning software. The software combines the angles and known locator positions to show the tag’s precise location on a live map — all in real time. There is also a mirror-image method, angle of departure (AoD), where the locator transmits and a device with multiple antennas reads the angle, but AoA is the more common choice because it keeps the expensive antenna array in the fixed locator and the tags cheap and simple.
The result is positioning accuracy down to about a metre or better — far beyond what plain Bluetooth on mobile devices could ever manage, and ideal for everyday indoor positioning. For the highest centimetre-level accuracy, many sites pair it with UWB tracking, all built on connected IoT sensors.
Conclusion
Bluetooth AoA locators and tags bring affordable, accurate indoor positioning to the huge Bluetooth Low Energy ecosystem. Locators read the angle of arrival with their antenna arrays; tags simply broadcast a signal as they move. Together they deliver real time asset tracking at a fraction of the cost of older high-precision systems.
Brilliant Info Systems designs and deploys Bluetooth AoA and UWB tracking tailored to your site. Explore our BLE tracking solutions or talk to our team to get started.
Frequently Asked Questions
What is the difference between a locator and a tag?
A locator is a fixed device with an antenna array that calculates the angle a signal arrives from. A tag is a small, battery-powered device with a single antenna that broadcasts a BLE signal. Locators find; tags are found.
How accurate is Bluetooth AoA?
Bluetooth 5.1 AoA typically delivers sub-metre positioning accuracy — far better than the older received signal strength method, which only estimates rough distance. For centimetre-level precision, UWB is the stronger option.
What is the difference between AoA and AoD?
With angle of arrival aoa, the fixed locator has the antenna array and reads the angle. With angle of departure aod, the moving device has the array instead. AoA is more common because it keeps tags small and cheap.
